4U Rackmount Chassis

Chassis are fabricated from aluminum sheet (Alloy 6061-T6, 0.125-inch thick) per ASTM B209 and federal spec QQ-A-250/11. Stainless steel and 14/16 gauge aluminum options are also available. For military and government applications, a MIL-C-5541E Type I Class 3 gold chemical film finish is offered as a standard or upgrade option.

Yes. The standard chassis finish is Chemical Film per MIL-C-5541E, Type 1, Class 3 (Gold), compliant with military and government procurement requirements. Handle finish is anodized per MIL-A-8625E, Class 2, Type 2. These finishes make the chassis suitable for defense electronics packaging and government laboratory installations requiring strict material standards.

Yes. Ron Nunes Enterprises offers fully custom chassis components and modules designed to your specifications. Assembled systems are available upon request and are built by Class A/XX certified welders. Custom applications including non-standard depths and specialized finishes can be accommodated. Engineering support is available throughout the design and ordering process.

A standard kit includes one front panel, one rear panel, two side brackets, one top cover, one bottom cover, front panel-mounted handles, and all required fastening hardware for assembly. Accessories such as angle brackets, chassis plates, center support bars, and chassis slides are available separately to complete your rack system build.

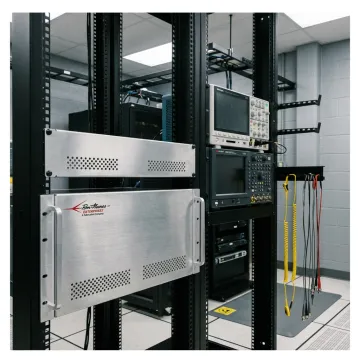

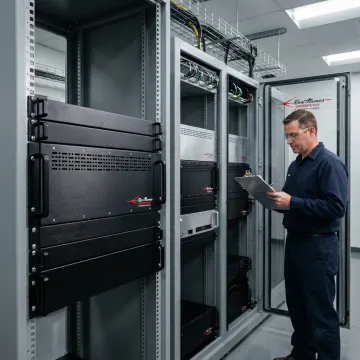

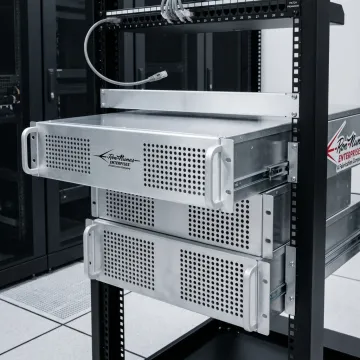

These chassis serve a wide range of industries including military and national defense, telecommunications and data centers, government and laboratory research (including LLNL), industrial and commercial equipment housing, and custom OEM electronics integration. Their MIL-spec compliance and modular design make them suitable for both stationary and mobile field applications requiring shock and vibration resistance.

Stock items in standard matt finish are available to ship within one week. Ron Nunes Enterprises guarantees shipment of any stocked item within 3 working days of ordering. Custom rack chassis mounts are typically delivered within 15 working days. Contact the sales team at 1-877-800-RACK or via the website for current availability and lead time confirmation.
